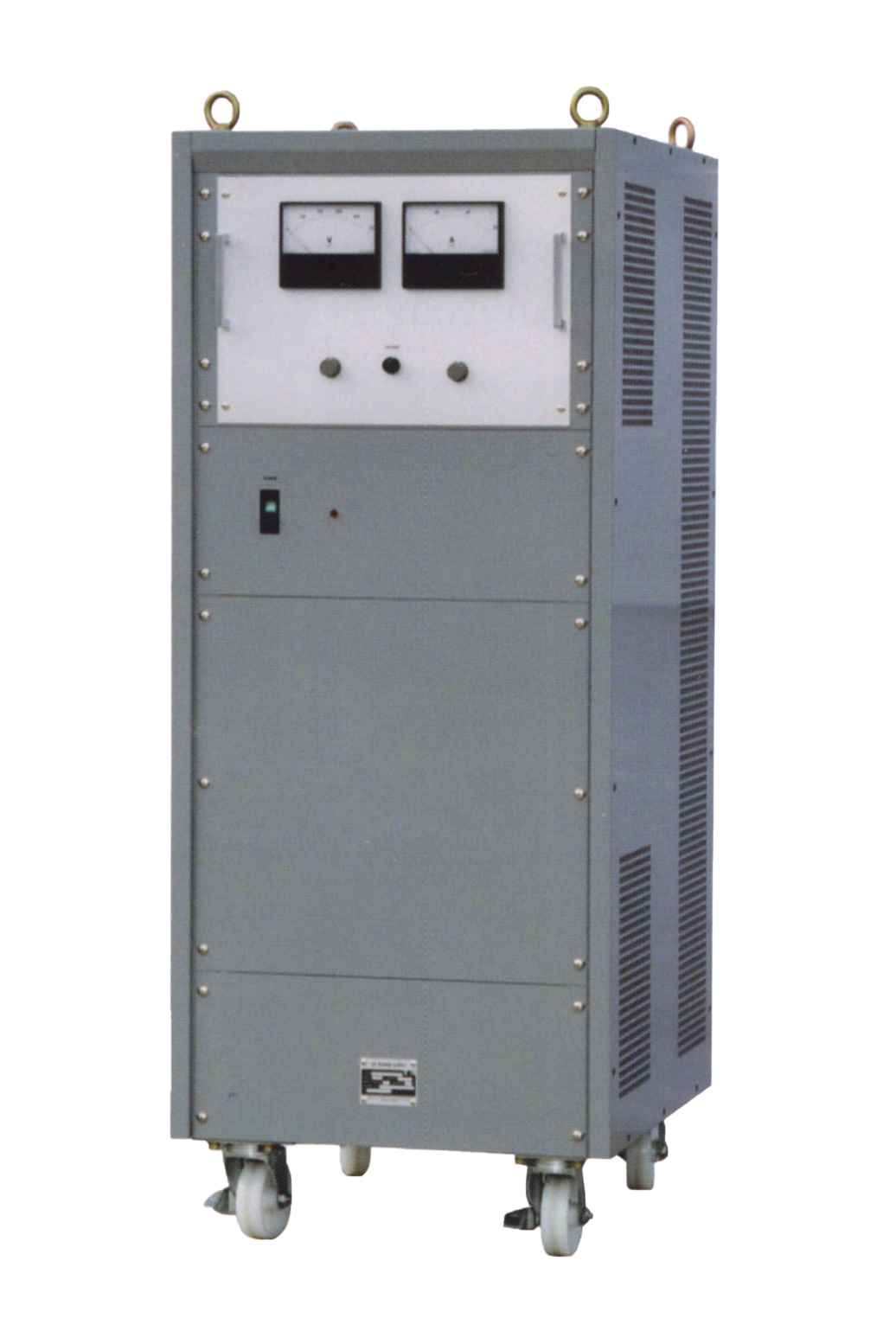

DC CV/CC POWER SUPPLY FOR INDUSTRIAL MEASUREMENTS
NCG SERIES
Functional variable
Optional
● Automatic sweep function.
● Digital panel meters.
● Digital control function (V, A).
Individual Specifications
| Output voltageModel |
0～16V | 0～36V | 0～60V | 0～120V |
|---|---|---|---|---|
| H150 | ||||
| H200 | modelNCG-330 | modelNCG-12010 | ||
| H300 | modelNCG-150 | modelNCG-630 | modelNCG-12020 | |
| H600 | modelNCG-1100 | modelNCG-350NCG-3100 | modelNCG-650 | modelNCG-12030NCG-12050★ |
| H900 | modelNCG-1200 | modelNCG-6100★ | modelNCG-12075★ | |
| H1200W540 | modelNCG-1300★ | modelNCG-3200★NCG-3300★ | modelNCG-6200★ | modelNCG-120100★ |
| H1200W850 | modelNCG-1500★ |
| Output voltageModel |
0～250V | 0～300V | 0～350V | |
|---|---|---|---|---|
| H150 | modelNHG-3502 | |||
| H200 | modelNHG-2505 | |||
| H300 | modelNHG-30005 | |||
| H600 | modelNHG-25010 | modelNHG-30010 | ||
| H900 | modelNHG-25020★ | modelNHG-30020★NHG-30030★ | ||
| H1200W540 | modelNHG-25030★NHG-25050★ | |||
| H1200W850 |
Common specifications
| Input power | 1-phase 100V or 200V AC ±10%, 50Hz or 60Hz. 3-phase 200V or 220V AC (marked * in the chart below). /td> |
|---|---|
| Constant current stability | Less than 0.05% of preset value + 10mA. |
| Overcurrent protection | CC drooping, automatic reset. |
| Overvoltage protection | Stabic circuit. |
| Temperature coefficient | 100ppm/deg |
| Ambient temperature | 0-45℃ |
| Output polarity | Positive or negative (switchable with short bar). |
| Recovery time | Within 100 µs. |
| Rise time | 10-50ms. |
| Cooling | Forced air cooling. |
