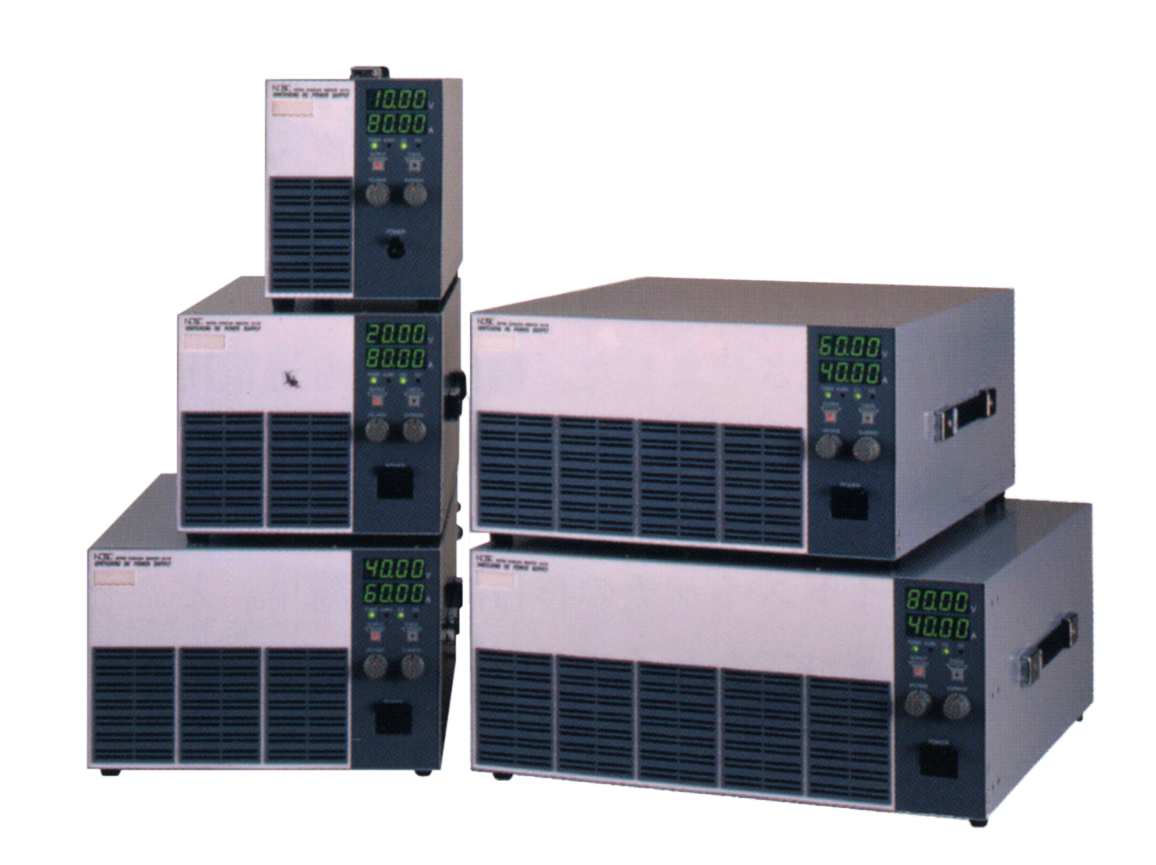

SLGV SERIES
Production will be discontinued at the end of December 2021. The successor model will be the SLGX series.
Output voltageOutput capacity |
0~10V | 0~20V | 0~40V | 0~60V |
---|---|---|---|---|
800W | modelSLGV-10-80 | modelSLGV-20-40 | modelSLGV-40-20 | modelSLGV-60-13 |
1.6kW | modelSLGV-10-160 | modelSLGV-20-80 | modelSLGV-40-40 | modelSLGV-60-26 |
2.4kW | modelSLGV-10-240 | modelSLGV-20-120 | modelSLGV-40-60 | modelSLGV-60-40 |
3.2kW | modelSLGV-10-320 | modelSLGV-20-160 | modelSLGV-40-80 | modelSLGV-60-52 |
4kW | modelSLGV-10-400 | modelSLGV-20-200 | modelSLGV-40-100 | modelSLGV-60-66 |
Output voltageOutput capacity |
0~100V | 0~200V | 0~300V | 0~500V |
---|---|---|---|---|
800W | modelSLGV-100-8 | modelSLGV-200-4 | modelSLGV-300-2.6 | modelSLGV-500-1.6 |
1.6kW | modelSLGV-100-16 | modelSLGV-200-8 | modelSLGV-300-5.3 | modelSLGV-500-3.2 |
2.4kW | modelSLGV-100-24 | modelSLGV-200-12 | modelSLGV-300-8 | modelSLGV-500-4.8 |
3.2kW | modelSLGV-100-32 | modelSLGV-200-16 | modelSLGV-300-10.6 | modelSLGV-500-6.4 |
4kW | modelSLGV-100-40 | modelSLGV-200-20 | modelSLGV-300-13.3 | modelSLGV-500-8 |
Production will be discontinued at the end of December 2021. The successor model will be the SLGX series.
Input power | 1-phase 100V or 200V AC±10%, 50Hz or 60Hz. |
---|---|
Overcurrent protection | CC drooping at preset current value, automatic reset. |
Overvoltage protection | Output interruption at about 120% of preset voltage value, automatic follow-up. |
Temperature coefficien | 100ppm/℃ for voltage, 300ppm/℃ for current. |
Recovery time | 100µSec |
Rise time | 150~250mSec |
Cooling | Forced air cooling, rear exhaust. |
Indicators | Digital panel meters (4-digit) . |
