THYRISTOR-TYPE AUTOMATIC VOLTAGE REGULATORS
SPRV・SPWV SERIES

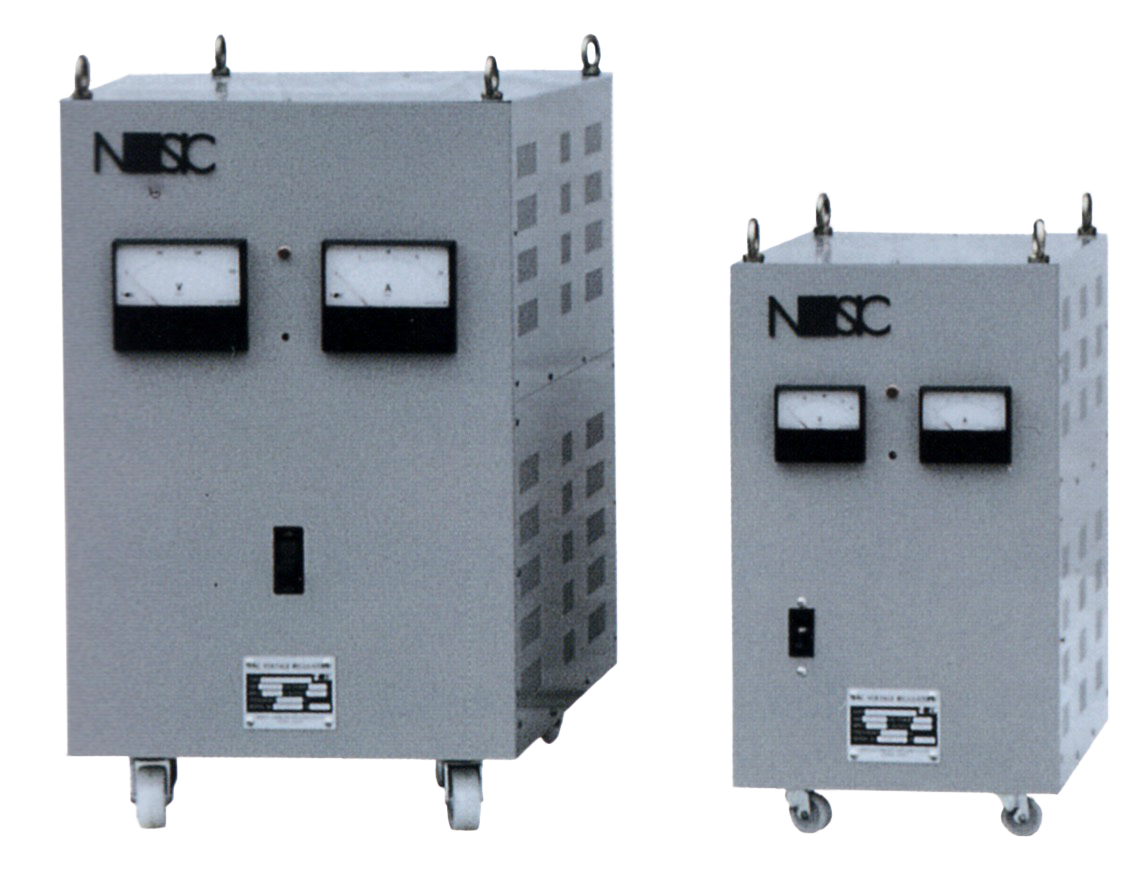

SPR series offers compact, lightweight and highly efficient power sources using thyristors to control voltage. Our exquisite control circuitry makes the series unrivaled in reliability and stability.
feature
Optional
● Input fluctuation range from --20% to +20%.
● Switchable input frequency.
● Output to multiple circuits.
● Rack-type case.
Individual Specifications
| Output voltageOutput capacity |
Non-insulated type | Insulated type | 3-phase insulated type |
|---|---|---|---|
| 1KVA | modelSPRV-1K-0/0 | modelSPRV-1K-□WF | |
| 2KVA | modelSPRV-2K-0/0 | modelSPRV-2K-□WF | |
| 3KVA | modelSPRV-3K-0/0 | modelSPRV-3K-□WF | |
| 5KVA | modelSPRV-5K-0/0 | modelSPRV-5K-□WF | modelSPWV-5K-□ |
| 7.5KVA | modelSPRV-7.5K-0/0 | modelSPRV-7.5K-□WF | modelSPWV-7.5K-□ |
| 10KVA | modelSPRV-10K-0/0 | modelSPRV-10K-□WF | modelSPWV-10K-□ |
| 15KVA | modelSPRV-15K-0/0 | modelSPRV-15K-□WF | modelSPWV-15k-□ |
| 20KVA | modelSPR-20K-0/0 | modelSPR-20K-□WF | modelSPW-20K-□ |
| 30KVA | modelSPR-30K-0/0 | modelSPR-30K-□WF | modelSPW-30K-□ |
| 45KVA | modelSPW-45K-□ | ||
| 50KVA | modelSPR-50K-0/0 | modelSPR-50K-□WF | modelSPW-50K-□ |
| 60KVA | modelSPW-60K-□ | ||
| 75KVA | modelSPR-75K-0/0 | modelSPR-75K-□WF | modelSPW-75K-□ |
| 100KVA | modelSPW-100K-□ |
※If the input and output voltage values are different, please contact our sales office.
※Boxes will be filled with symbols representing input and output voltages.
※The model for 20KVA and above is SPR-.
※The model for 20KVA and above is SPW-.
※The SPR- has a factory-set input frequency of 50Hz/60Hz.
Voltage value symbol * □ part of model code (Input voltage and output voltage are indicated by a symbol)
| 0 | 100V | 1 | 110V | 2 | 115V | 3 | 200V | 4 | 210V | 5 | 220V | 6 | 380V |
| 7 | 460V | 8 | 440V | 9 | 230V | 10 | 550V | 11 | 270V | 12 | 280V | 13 | 120V |
| 14 | 480V | 15 | 208V | 16 | 105V | 17 | 415V | 18 | 240V | 19 | 400V | 20 | 150V |
| 21 | 125V | 22 | 130V | 23 | 117V | 24 | 205V | 25 | 600V | 26 | 119V | 27 | 250V |
| 28 | 420V | 29 | 90V | 30 | 235V | 31 | 32 | 33 | 167V | 34 | |||
| 35 | 36 | 37 | 38 | 39 | 40 | 107V |
Common specifications
| Input fluctuation range | 15% to +15%, ±10% at 380V or above. | |
|---|---|---|
| Input frequency | 50Hz or 60Hz (adjusted at shipping). | |
| Load fluctuation | 0-100%. | |
| Response speed | 0.1s, 0.2s for SPR-10k/15k/20k/30k. | |
| Cooling | Natural air cooling. | |
| Indicators | Analog panel meters (for 1kVA and below, voltmeter only). | |
| Installation | Floor standing. |
