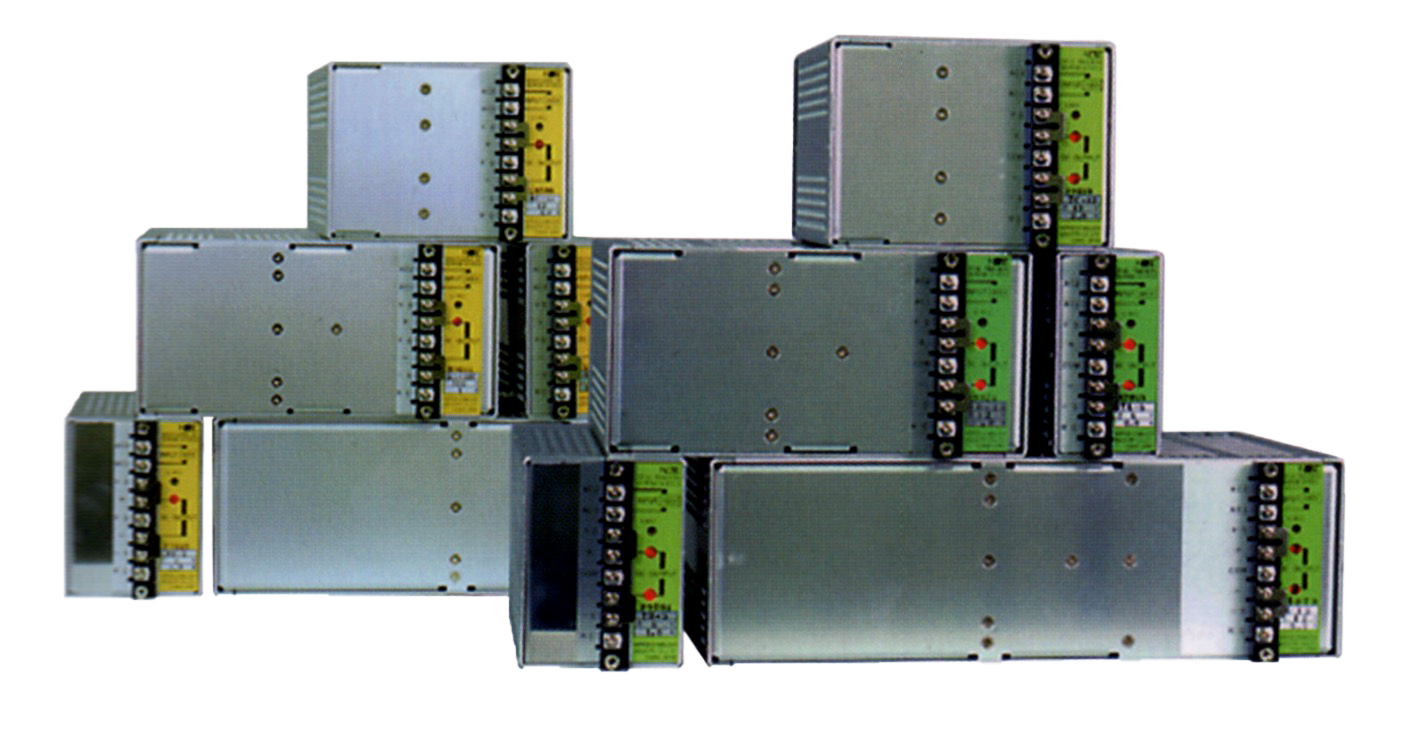

FIXED-OUTPUT DC CV POWER SUPPLY, MONOPOLAR/BIPOLAR OUTPUTS
PAARECⅡ
PAARECⅠ is for single-polarity output. PAARECⅡ is for dual-polarity outputs. As compared to older models, the size is half and the weight is two thirds, while quality, performance and reliability have been greatly improved due to new circuitry. Series control do not generate line or source noise.
Optional
● Other input voltages than 1-phase 100V or 200V AC.
● Output voltages not in standard specifications (minimum quantity order).
Individual Specifications
| Output voltageModel |
±5V | ±12V | ±15V | ±24V |
|---|---|---|---|---|
| TA | modelTA-5 | modelTA-12 | modelTA-15 | modelTA-24 |
| TB | modelTB-5 | modelTB-12 | modelTB-15 | modelTB-24 |
| TC | modelTC-5 | modelTC-12 | modelTC-15 | modelTC-24 |
| TD | modelTD-5 | modelTD-12 | modelTD-15 | modelTD-24 |
| TE | modelTE-12 | modelTE-15 |
Common specifications
| Input power | 1-phase 100V or 200V AC±10%, 50Hz or 60Hz. |
|---|---|
| Output polarity | Positive and negative. |
| Ripple | 800 µV (RMS, typ.) |
| Tracking ratio | ±0.2% |
| Overcurrent protection | Current limiting at 110-120% of rated current, automatic reset. |
| Temperature coefficient | ±0.002%/℃ (typ.) |
| Recovery time | Within 100 µs, parallel-series operation possible. |
