STABITRON DC/DC CONVERTER

JSIC SERIES

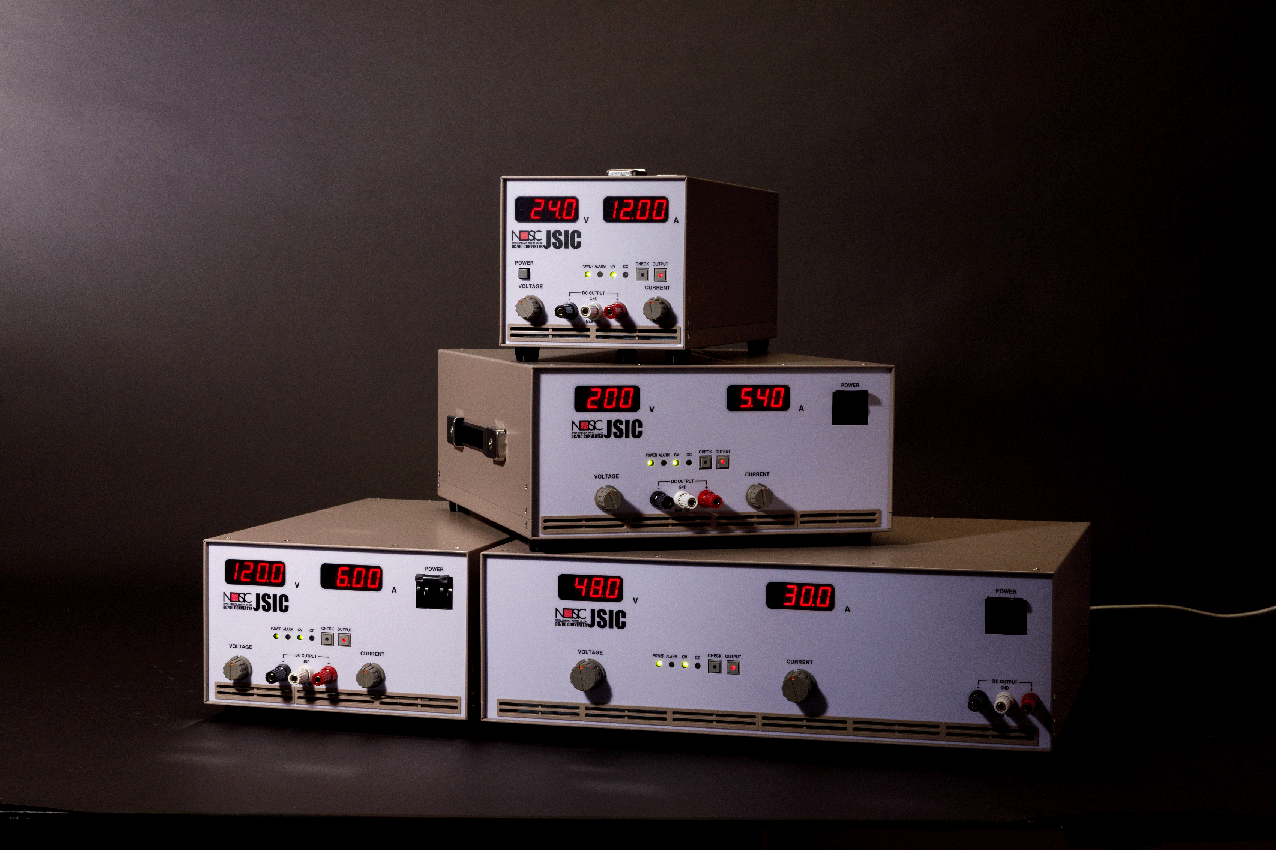

JSIC is a series of high-precision, high-efficiency and very lightweight DC/DC converters based on the STABITRON DC power supply technology. It comes in various models over wide ranges of input voltage, output voltage and capacity. The output voltage and output current can be set to any desired values on dials. The lead time between order to shipment is very short.

Common specifications

Input voltageOutput capacity	DC24V （22～30V）	DC48V （43～60V）	DC100V （90～125V）	DC200V （180～250V）
280W	model JSIC24-12A JSIC24-24A JSIC24-48A JSIC24-60A JSIC24-100A JSIC24-180A JSIC24-250A	model JSIC48-24A JSIC48-48A JSIC48-100A JSIC48-180A JSIC48-250A	model JSIC100-18A JSIC100-36A JSIC100-60A JSIC100-120A JSIC100-180A	model JSIC200-18A JSIC200-36A JSIC200-60A JSIC200-120A JSIC200-180A
570W	model JSIC24-12B JSIC24-24B JSIC24-48B JSIC24-60B JSIC24-100B JSIC24-180B JSIC24-250B	model JSIC48-24B JSIC48-48B JSIC48-100B JSIC48-180B JSIC48-250B	model JSIC100-18B JSIC100-36B JSIC100-60B JSIC100-120B JSIC100-180B	model JSIC200-18B JSIC200-36B JSIC200-60B JSIC200-120B JSIC200-180B
840W	model JSIC24-100C JSIC24-180C JSIC24-250C	model JSIC48-24C JSIC48-48C JSIC48-100C JSIC48-180C JSIC48-250C	model JSIC100-18C JSIC100-36C JSIC100-60C JSIC100-120C JSIC100-180C	model JSIC200-18C JSIC200-36C JSIC200-60C JSIC200-120C JSIC200-180C
1440W	model JSIC24-100D JSIC24-180D	model JSIC48-24D JSIC48-48D JSIC48-100D JSIC48-180D JSIC48-250D	model JSIC100-18D JSIC100-36D JSIC100-60D JSIC100-120D JSIC100-180D	model JSIC200-18D JSIC200-36D JSIC200-60D JSIC200-120D JSIC200-180D

Common specifications

Output polarity	Floating, with positive or negative grounding.
Control polarity	Positive line control (positive: signal system common line).
Overcurrent protection	CC drooping at preset current value, automatic reset.
Overvoltage protection	Output interruption at about 120% of preset voltage value, automatic follow-up at 5-100% of rated voltage).
Overheat protection	Output interruption by internal fin temperature detection.
Temperature coefficient	± 100ppm/℃ for voltage, ±250ppm/℃ for current.
Recovery time	Within 100 µs.
Rise time	10-50ms.
Cooling	Forced air cooling, rear exhaust.
Indicator	3½-digit digital panel meters.
