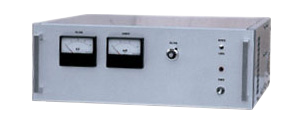

MIDDLE- AND HIGH-VOLTAGE CV/CC POWER SUPPLY
HVF SERIES
HVF series offer transistor-controlled high-voltage DC CV power supply units for photomultiplier, CRD and other applications. The series is time-proven with high reputations since its introduction, and is now even more reliable, with improved output stability and ripple. The CC drooping and automatic resetting for overcurrent protection makes the series applicable under any load conditions.
Optional
● Digital panel meters.
● Digital control function.
● Positive/negative switching mechanism.
● Negative grounding.
● DC CV/CC power supply (HVF series).
Individual Specifications
| Output voltageModel |
0～1200V | 0～1500V | 0～2000V | 0～3000V |
|---|---|---|---|---|
| H150 | modelHVF-1010HVF-1050 | modelHVF-2010 | modelHVF-3005HVF-3020 | |
| H300 | modelHVF-1201 | |||
| H600 | modelHVF-1202 | modelHVF-2001HVF-2002 | ||
| H900 | modelHVF-1205 | modelHVF-2003 |
Common specifications
| Input power | 1-phase 100V or 200V AC±10%, 50Hz or 60Hz. |
|---|---|
| Output current stability | ±0.5% of present value + 3mA. |
| Overcurrent protection | CC drooping, automatic reset (crossover method). |
