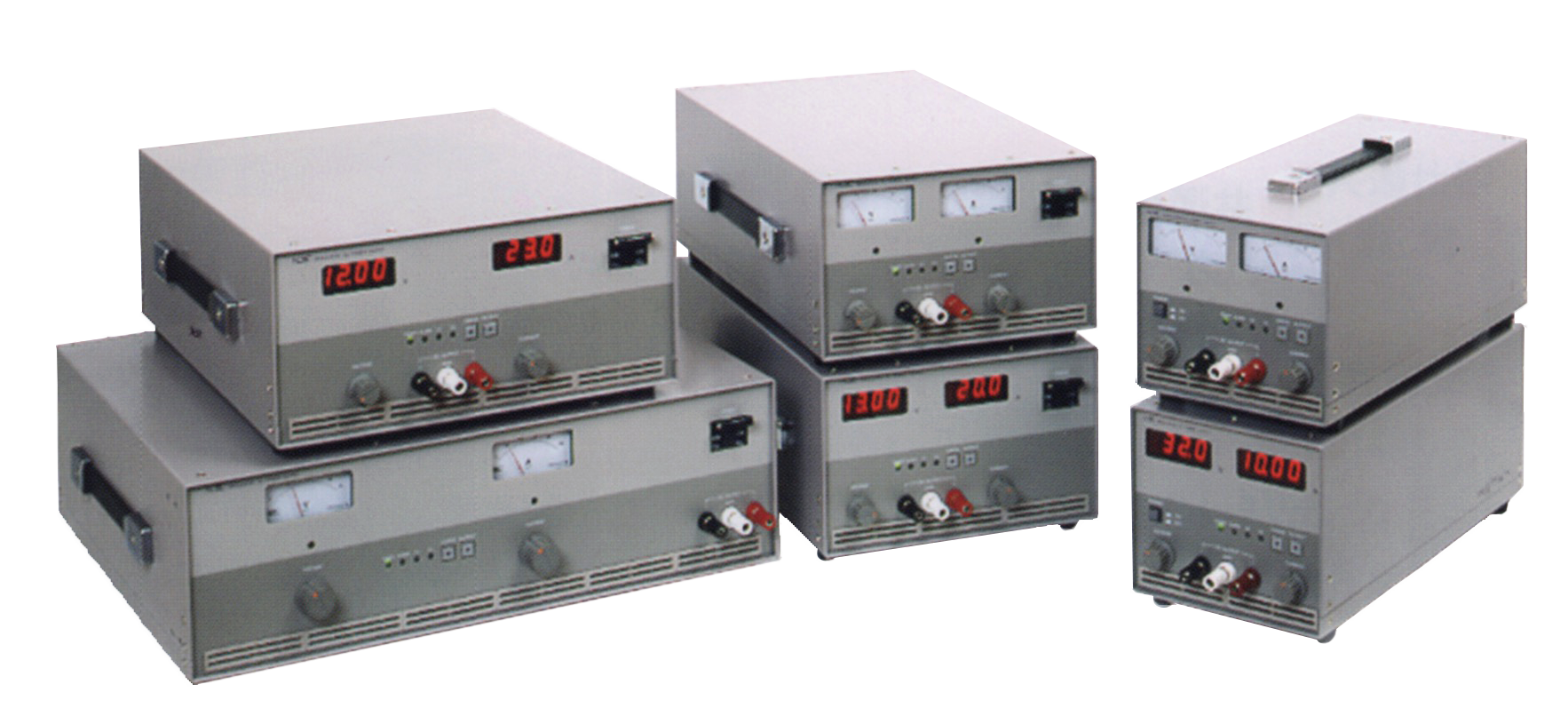

STABITRON DC CV/CC POWER SUPPLY
SICZ SERIES
STABITRON is a combination of light-weight, high-efficiency switching control and high-precision, high-reliability series control. The STABITRON products are all ultra light and compact, yet highly efficient. They feature stabic overvoltage protection circuit, and current check function. Remote control is easy by simply moving the slide switch. These hi-tech, hi-grade products certainly rank the highest in DC constant-voltage/constant-current (CV/CC) power supplies.
Individual Specifications
| Output voltageOutput capacity |
0～18V | 0～36V | 0～60V | 0～120V | 0～180V | 0～250V |
|---|---|---|---|---|---|---|
| 400Wtype | modelSICZ-1Z20 | modelSICZ-1V10 | modelSICZ-1J6 | modelSICZ-2B3 | modelSICZ-2Z2 | modelSICZ-2E1R5 |
| 800Wtype | modelSICZ-1Z40 | modelSICZ-1V20 | modelSICZ-1J12 | modelSICZ-2B6 | modelSICZ-2Z4 | modelSICZ-2E3 |
| 1.2kWtype | modelSICZ-1Z60 | modelSICZ-1V30 | modelSICZ-1J18 | modelSICZ-2B9 | modelSICZ-2Z6 | modelSICZ-2E4R5 |
| 2kWtype | modelSICZ-1Z100 | modelSICZ-1V50 | modelSICZ-1J30 | modelSICZ-2B15 | modelSICZ-2Z10 | modelSICZ-2E7R5 |
| 4kWtype | modelSICZ-1Z200 | modelSICZ-1V100 | modelSICZ-1J60 | modelSICZ-2B30 | modelSICZ-2Z20 | modelSICZ-2E15 |
Common specifications
| Input power | 1-phase 100V or 200V AC ±10%, 50Hz or 60Hz. |
|---|---|
| Overcurrent protection | CC drooping at preset current value, automatic reset. |
| Overvoltage protection | Output interruption at about 120% of preset voltage value, automatic follow-up. |
| Temperature coefficien | 100ppm/℃ for voltage, 250ppm/℃ for current. |
| Recovery time | 100 µSec |
| Rise time | 10-50mSec |
| Cooling | Forced air cooling, rear exhaust. |
| Indicators | Analog panel meters (class 2.5) for SIC series, digital panel meters (3-1/2-digit) for SICZ series. |
