DC CV/CC POWER SUPPLY

MEISTER SERIES

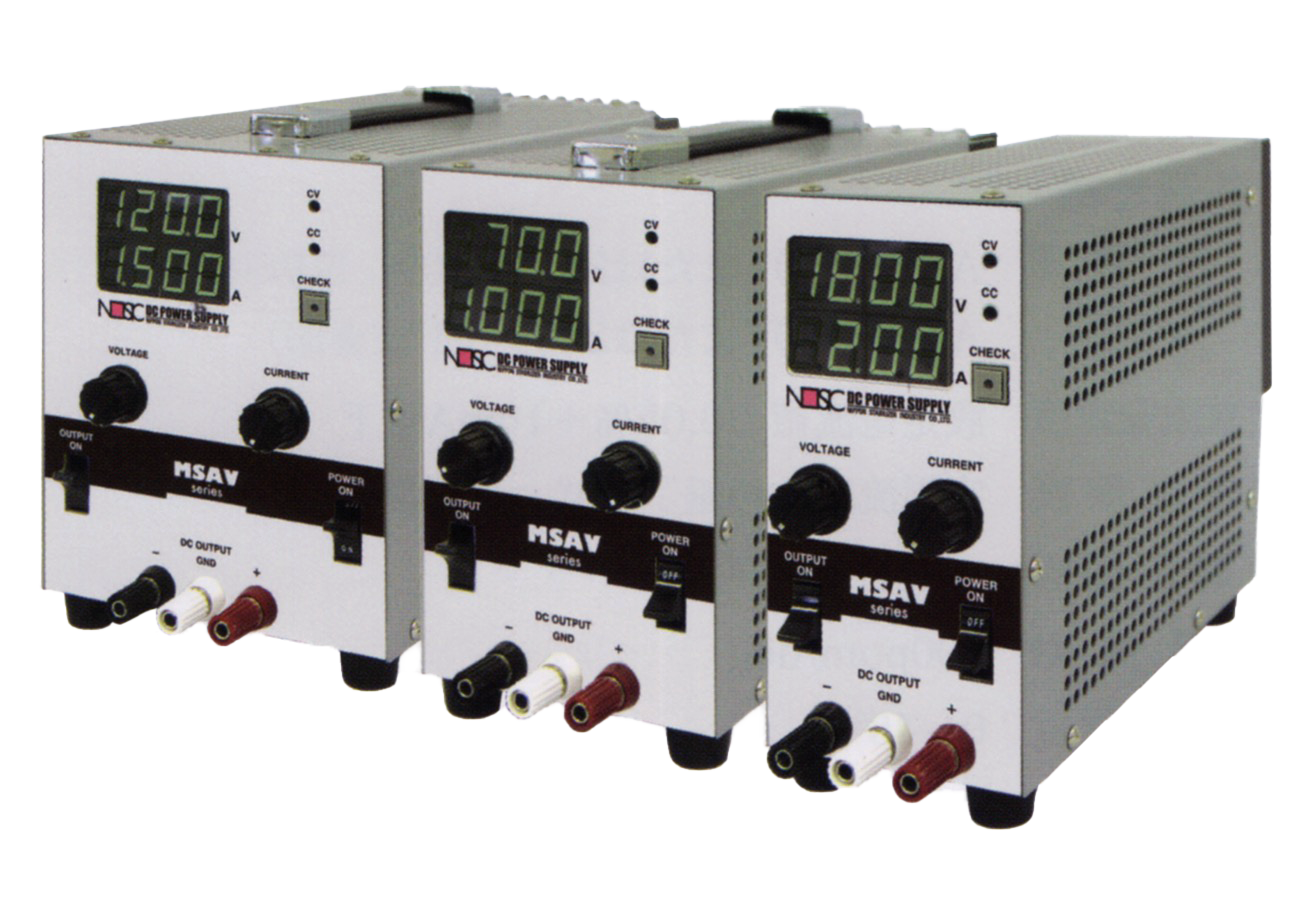

The design policies for MSA and MSAZ series were low cost, high reliability, compact size and light weight. All models features the CC drooping function (crossover method), CV/CC mode indicators and an output switch. MSAZ series has 3½-digit digital panel meters.

Functional variable

Optional

● Power supply control by external input signals.
● Output signal generation according to power supply status.
● Output signal generation during CV drooping.
● Remote on/off control.
● GPIB.

Common specifications

Output voltageOutput capacity	0～18V	0～36V	0～60V	0～70V	0～120V
36W	modelMSAV18-2	modelMSAV36-1			modelMSAV120-03
72W	modelMSAV18-3	modelMSAV36-2		modelMSAV70-1	modelMSAV120-06
180W	modelMSAV18-5MSAV18-10	modelMSAV36-2.5MSAV36-5	modelMSAV60-3	modelMSAV70-2.5	modelMSAV120-1.5

Output voltageOutput capacity	0～800V
72W	modelMSAZ800-01

Common specifications

Input power	1-phase 100V or 200V AC ±10%, 50Hz or 60Hz.
Output current precision	FS±0.05% + 0.5mA (typ.)
Output polarity	Positive or negative (switchable with short bar).
Ambient temperature	0-40℃
Ambient humidity	30～85% RH, no freeze or condensation.
Temperature coefficient	±50ppm/℃ (typ.)
Recovery time	Within 100 µs (typ.)
Rise time	25-50ms (typ.)
Cooling	Natural air cooling.
