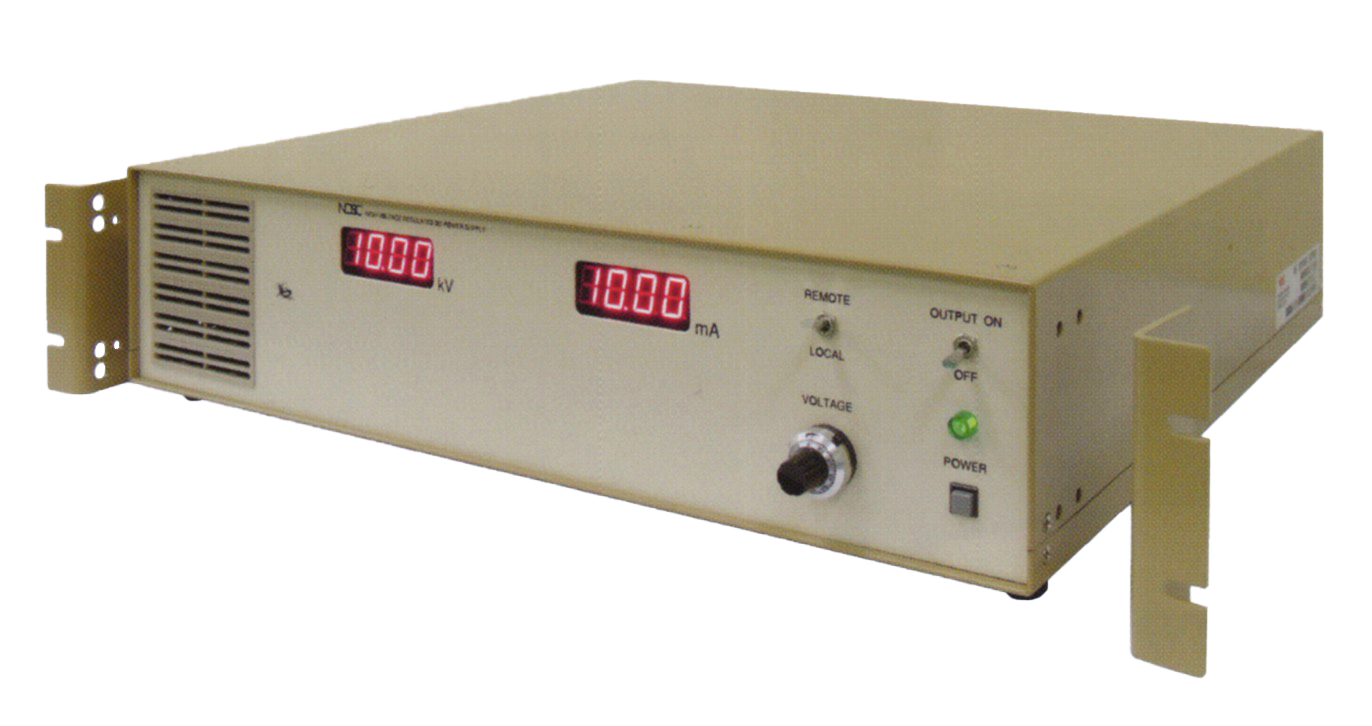

VERY-HIGH-VOLTAGE DC/CV POWER SUPPLY
HSPV・HSNV SERIES
The HS series come in 16 models for the range between 10kV and 60kV. This very high voltage range has been a difficult barrier in Japan where humidity is high during hot seasons, but our R&D efforts have cleared it with excellent switching technologies. The best quality, reliable support after sales, and revolutionary low cost---we introduce HS series with full confidence.
Individual Specifications
| Output voltageModel |
0～10kV | 0～20kV | 0～30kV | 0～40kV | 0～50kV |
|---|---|---|---|---|---|
| 430×100×400Positive output negative grounding |
modelHSPV-10K-5HSPV-10K-10 | modelHSPV-20K-2HSPV-20K-5 | modelHSPV-30K-2 | modelHSPV-40K-1 | modelHSPV-50K-1 |
| 430×100×400Negative output positive grounding |
modelHSNV-10K-5HSNV-10K-10 | modelHSNV-20K-2HSNV-20K-5 | modelHSNV-30K-2 | modelHSNV-40K-1 | modelHSNV-50K-1 |
Common specifications
| Input power | 1-phase 100V or 200V AC±10%, 50Hz or 60Hz. |
|---|---|
| Overcurrent protection | Current drooping, automatic reset. |
| Short circuit protection | Current drooping, automatic reset (including arc strike time). |
| Temperature coefficient | 100ppm/℃ |
| Remote control | Variable output voltage with 0--10V signals. Output start/stop with on/off contact signal. |
| Output monitor | Output voltage converted into 0--10V DC signals. Output current converted into 0--10V DC signals. |
| Indicators | 3½-digit digital panel meters(output voltmeter and output ammeter). |
| Cooling | Forced air cooling. |
